Horizon 16 station Collator with SPF10/FC10 Booklet maker & Trimmer

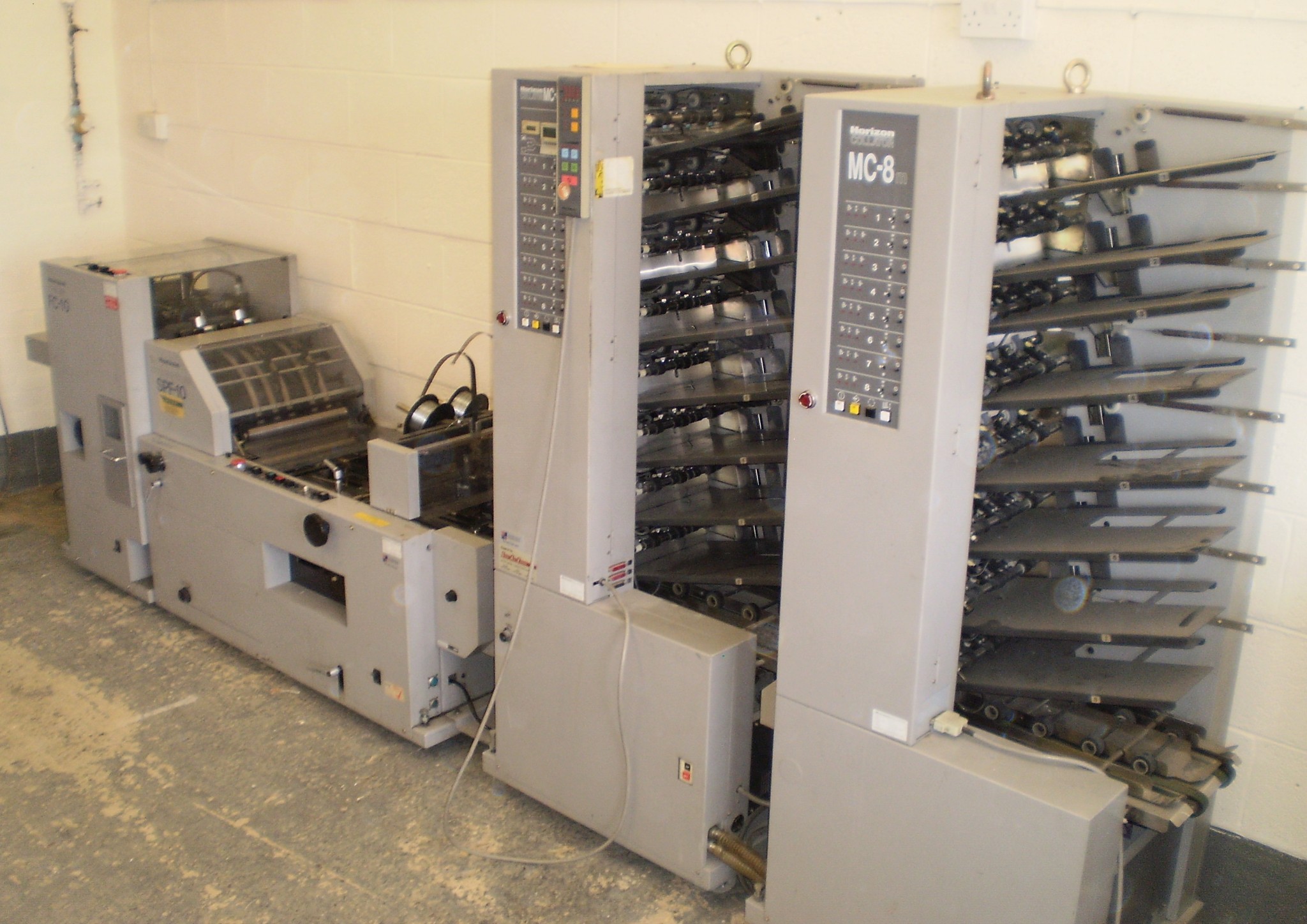

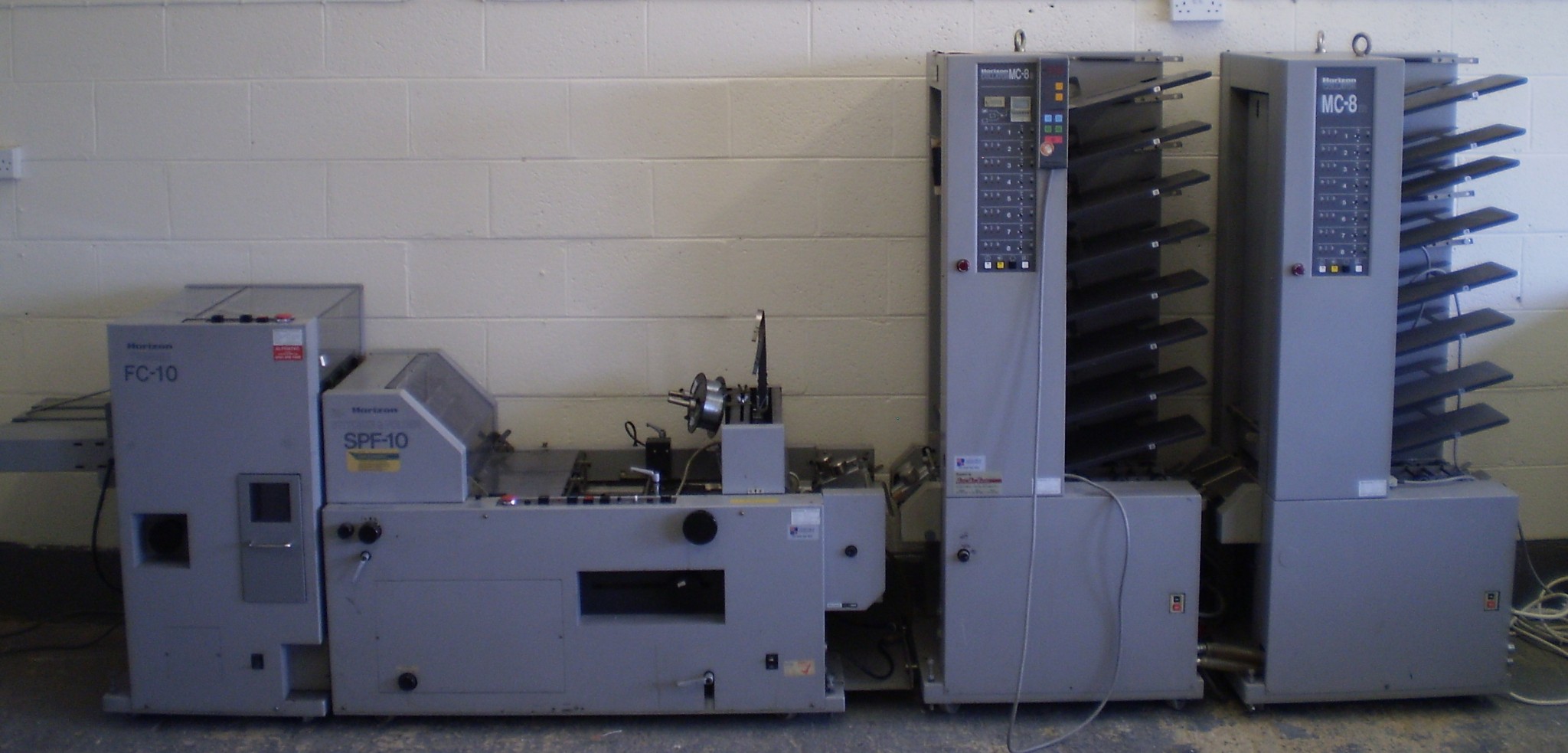

Horizon 16 station suction collator system (MC8a & MC8m) with SPF10 Bookletmaker & FC10 Trimmer.

The Horizon MC-8 offers proven, state-of-the-art, suction-feed technology that elimates feeding and marking problems. The space-saving, vertical design also incorporates advanced programming features a real productivity advantage that allows non-stop collating.

The Horizon SPF10 booklet maker and FC 10 Trimmer

Horizon heavy duty SPF-10/FC-10 manual set-up stitchfold/fore-edge trim.

Major specifications for SPF-10

Maximum stitching and folding size: 330 x 470mm (13″ x 18.5″)
Minimum stitching and folding size: 210 x 210mm (8.3″ x 8.3″)
Maximum stitching thickness: 4mm (0.16″)
Production speed: Up to 1,500 bks/hr
Machine weight: 270kg

Major specifications for FC-10

Booklet size 99 x 200mm (3.9″ x 8″) to 255mm x 320mm (8.9″ x 12.6″)
Cutting thickness 24 sheets 80gsm
Production speed Up to 1,500 bks/hr
Machine weight 170kg
