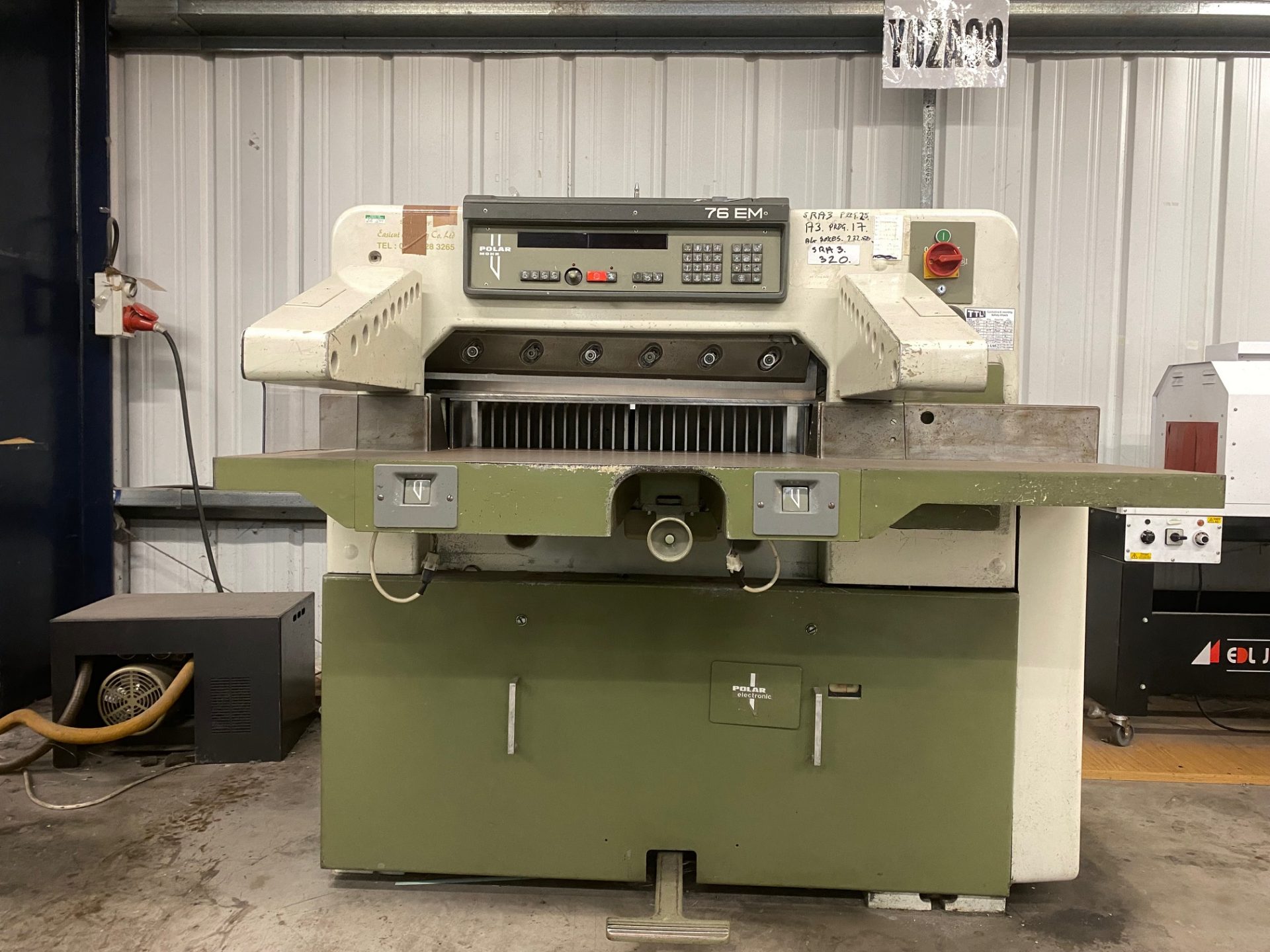

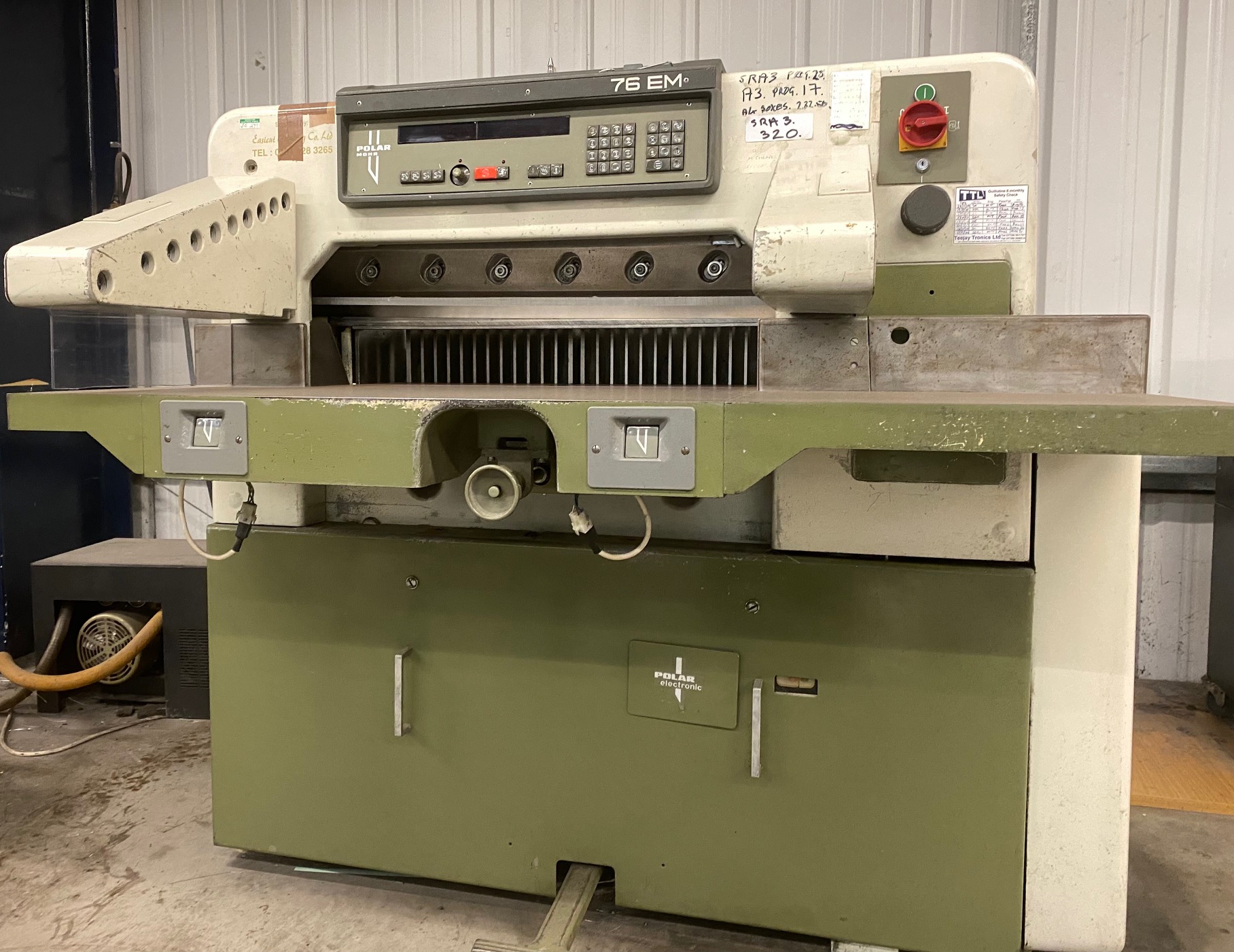

Polar 76 EM Guillotine

Machine: Polar 76EM
Electro magnetic clutch & brake (Two button operation), powered interlocked backgauge, variable pressure hydraulic clamping, Digital programming and readout  single end pull dip shear action, air bed
Safety Equipment: Infra red front guarding system, timed and cross monitored cut buttons, rear table guarding, compliant with HSE/PIAC standards on guillotine safety.

Specifications

Cutting Width 76cm
Clamp Opening 11cm
Feed Depth 76cm
Power required 1.5kW / 2 H.P.
Net weight 1040kG
Width without side tables 152cm
including side tables
Length 175cm
Height 140cm
Table Front Length 48.5cm
Table Height 90cm
Clamp Pressure min 100daN / 220lbs
Clamp Pressure max 2500daN / 5550lbs
Knife thickness 11.7mm
Backgauge speed, slow/express 8.2cm / sec
Static floor load 650 daN / m2
Contact area load 1.5 daN / cm2
Supply voltage 340 – 440 V
